MODERN CASEMENT PUSH OUT

SIGNATURE COLLECTION
Topside Roofing & Siding Images

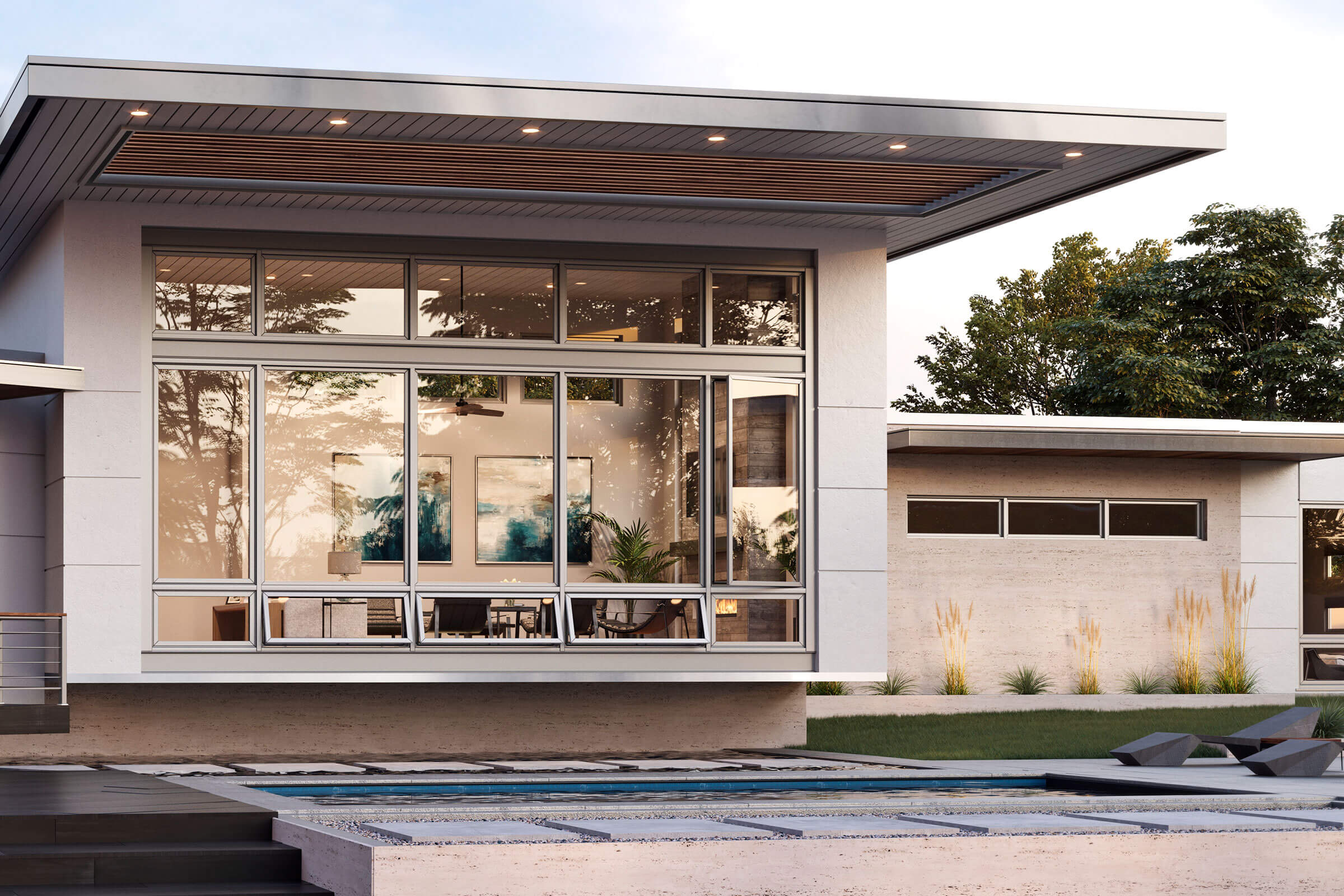

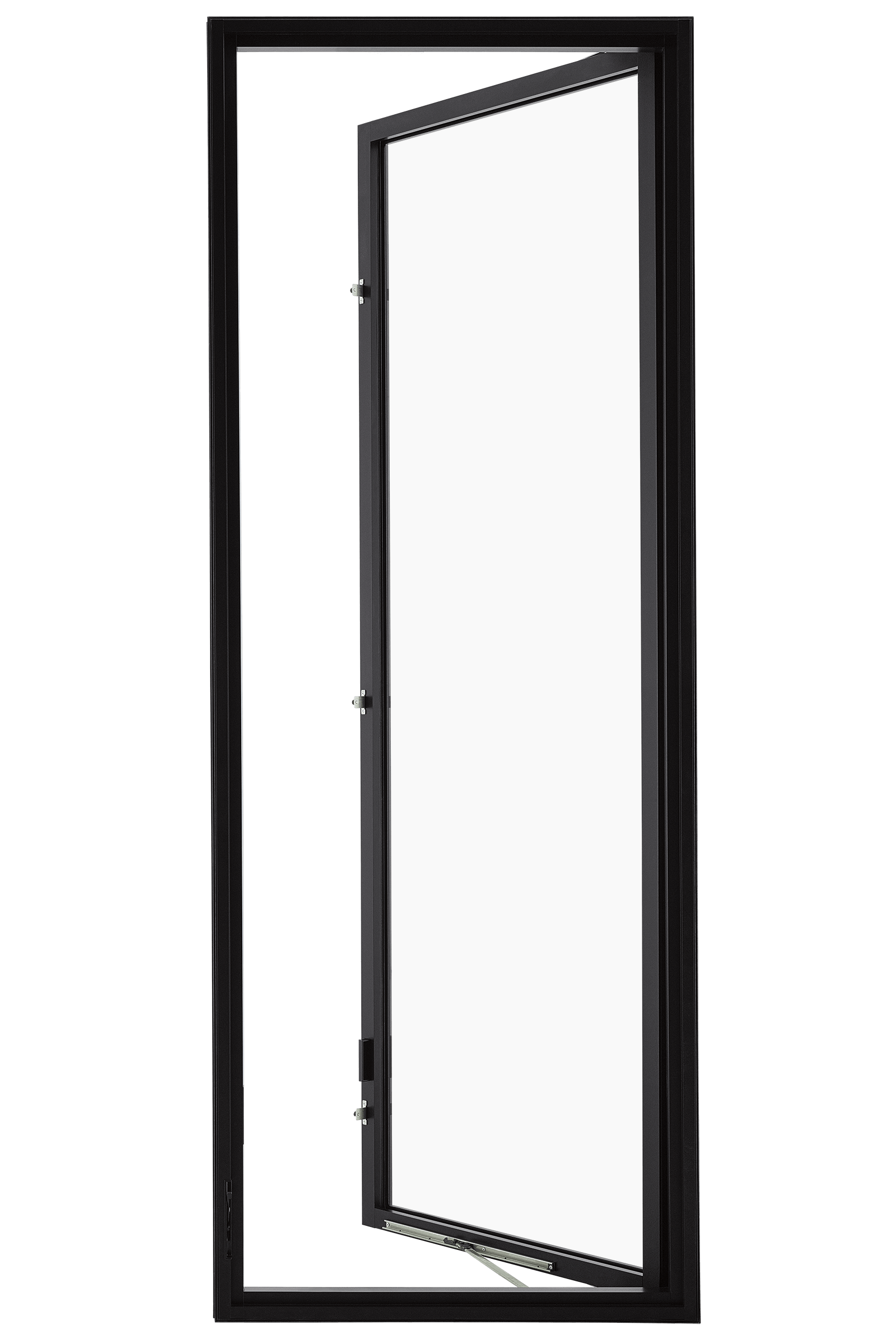

Designed as part of the same modular system, the Marvin Signature Modern Casement Push Out window lets you build and configure with ease and do even more with Modern.
Topside Roofing & Siding Images

Product Features:

  • Features a sleek and modern form
  • Push out and crank out versions available
  • Numerous configurations and sizes available
  • A discreet, nested handle and two locking lever to engage or dis-engage multi-point locks allows for smooth operation
  • Available in heights up to 9 feet or widths up to 3 feet
  • Rated up to PG50 for impressive performance
  • Sash slides across frame for easy wash mode
  • Thermally efficient to perform in demanding climates
  • 1" Dual-Pane IG Low E2 with Argon - 0.28
  • 1 1/4" Triple-Pane IG Low E2/E1 with Argon - 0.20
  • Right-hand or left-hand operating configurations
  • Available with screen options and Lock Status Sensor

DESIGN OPTIONS

Exterior Finish

Carefully curated to meet the exacting principles and aesthetic standards of true modern architecture, Marvin Modern offers a color palette inspired by the elements. Choose split interior and exterior color finishes or matching finishes designed to coordinate.

Topside Roofing & Siding Images

Gunmetal

Bronze

Ebony

Silver

Stone White

Interior Finish

The Modern product line features an intentionally selected, low-gloss interior color palette that evokes the elemental nature of modern design. Choose split interior and exterior color finishes or matching finishes designed to coordinate.

Gunmetal

Bronze

Ebony

Clear Anodized

Stone White

*Finish samples are approximate and colors on screen can vary. Visit your local dealer to see actual color samples.

Hardware

Marvin hardware is far more than functional its engineered to be both durable and elegant. From traditional to contemporary, our hardware comes in a variety of architectural styles and finishes to meet your aesthetic needs and design goals. Its designed for effortless operation even at large sizes and is built to last, with optional PVD finishes for door hardware to resist fading and discoloration in even the harshest environments. A Marvin exclusive, our commercial-grade hardware is some of the toughest in the industry.

Features Include:

Opens and closes easily with less cranking
Opens wide for unobstructed views
Can meet egress at smaller sizes
Provides top performance, even at the largest sizes


Push Out Handle Shown in Matte Black

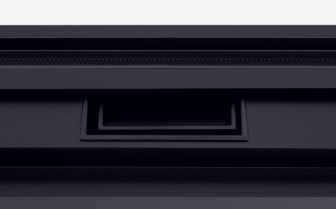

Handle Closed

Handle Open


*Hardware styles shown are available in all finish options below.

Finishes

Matte Black

Matte Bronze

Satin Nickel

Topside Roofing & Siding Images

Silver

White

Glass

Bronze Tint

Gray Tint

Obscure Tint

Frosted

*Not all decorative glass is compatible with all products. Laminated glazing is available in Frosted, Obscure and Gray or Bronze tint. Check with your dealer for a recommendation on which glass is right for your project. Images may not be an accurate representation.

Energy Efficiency

Selecting the right options for large expanses of glass is an important aspect for balancing wide open views with energy efficiency. Choose from dual pane or triple pane glass with Low E coatings and Argon or Krypton-Argon blend insulating gas. Variations are available to help meet climate and performance requirements across the country, described in more detail on our glass page.

Mulling

The Modern product line is designed to work together visually as a modular system with consistent profiles and narrow sightlines less than 3 inches even on units that are mulled together.

Mull

Screens

When fresh air flow is a priority, multiple screen options are available to keep insects and debris at bay. Choose a standard full screen with an aluminum surround in multiple finishes.

Charcoal High Transparency

*All screens are shown on a casement window for representative purposes only.

Home Automation

Topside Roofing & Siding Images

The Marvin Lock Status Sensor brings smart home capabilities to Marvin windows and doors. This affordable solution is installed in the factory and fully concealed meaning no unsightly sensors attached on the exterior or interior, and no additional modification of your product once installed. The sensor can be wired or wirelessly connected, working in tandem with your smart home security system to indicate if windows and doors are closed and locked or unlocked, providing peace of mind when security is a concern.
