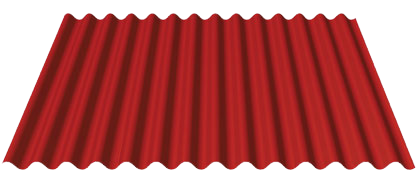

Nu-Wave Corrugated Metal Roofing and Siding

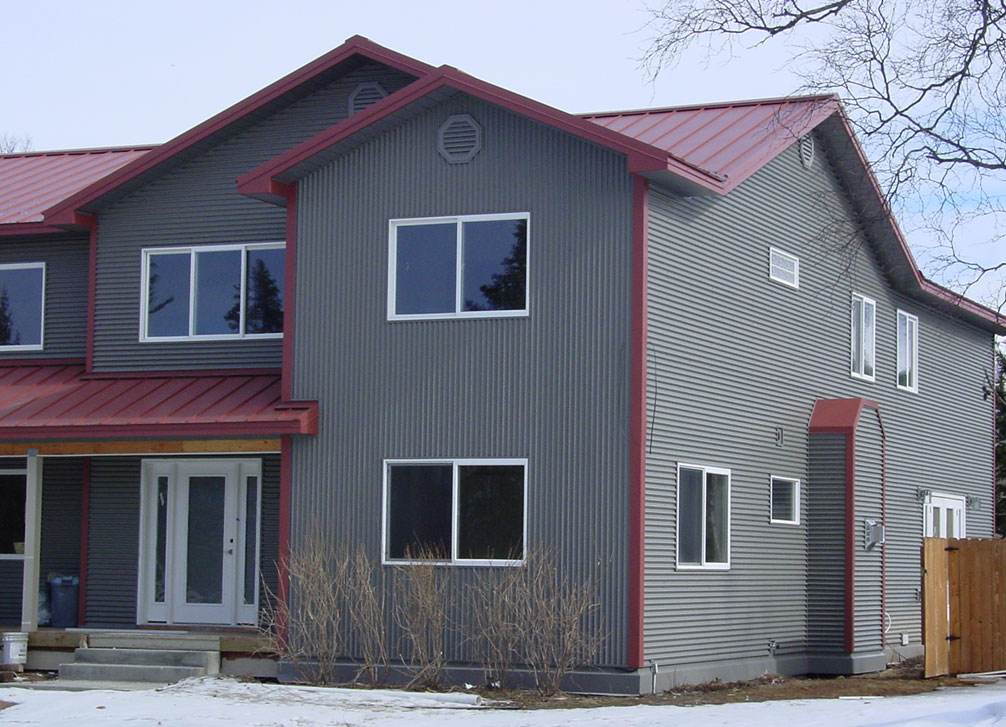

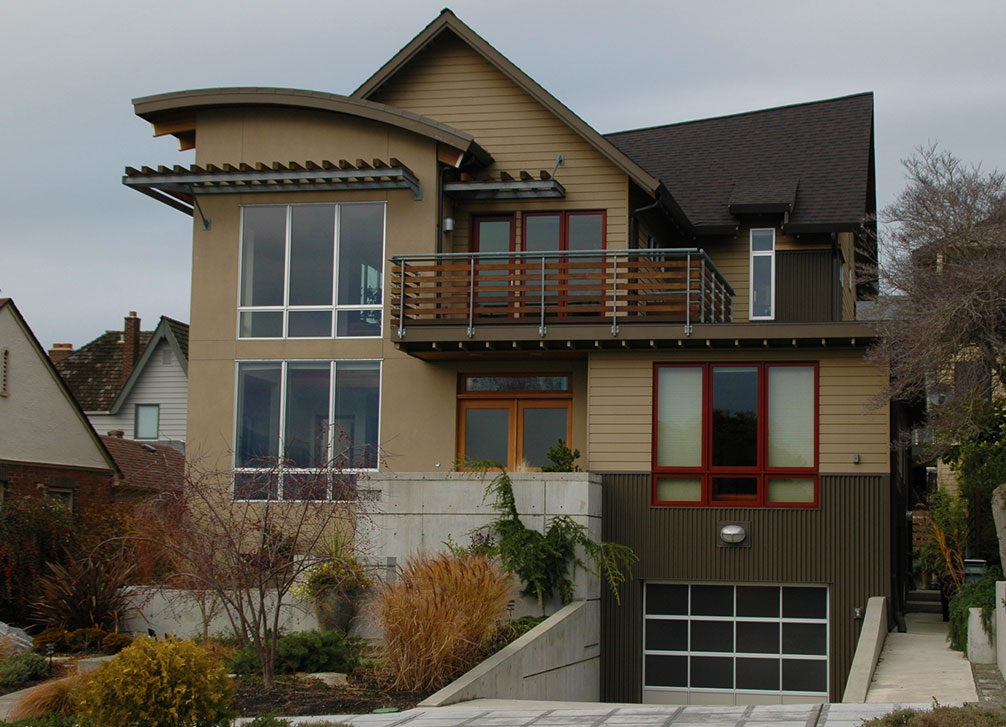

Nu-Wave Corrugated metal roofing and siding is a classic exposed fastened metal panel suited for siding and roof applications. This metal panel is used in civic, education, hospitality, hotels, residential, retail, and mixed-use applications as well as in some roof designs with optional factory curving.
Roof assemblies are Class A Fire Rated when installed on non-combustible deck or framing per IBC, IRC, or when installed in accordance with UL listings (UL790). Wall assemblies rated for fire resistance (UL263) when installed in accordance with UL listings.
Features & Benefits
- The panel measures 36 out-to-out, with a 32 net coverage for metal roof applications and a 34 2/3 net coverage for metal siding applications.
- Metal Roof Installation: Minimum 3:12 roof slope. Metal Siding Installation: Horizontal or Vertical.
- Gauges: 26ga in Natural Rust (SMP) and Dura Tech nt PDF | RTF SMP colors. 24ga and 22ga in Dura Tech 5000 PDF | RTF PVDF colors. 20ga available in ZINCALUME Plus
- Limited Lifetime Warranty for residential applications.
- Class 4 Impact (Hail) Resistance rated per UL 2218.
- Oil Canning: All flat metal surfaces can display waviness commonly referred to as oil canning. Oil canning is an inherent characteristic of steel products, not a defect, and therefore is not a cause for panel rejection.
- Custom manufactured panel lengths: 6-0 to 50-0.
Nu-Wave Corrugated Colors
Color Selected: Surf White
ASC Building Products has enhanced the performance of Design Span hp with Dura Tech coating systems. All colors are Energy Star listed cool colors formulated to help reduce the demand for energy. This paint technology integrated provides a lifetime of durability for homeowners.
Nu-Wave Corrugated Colors - 26 Gauge Colors
Dura Tech 5000 (PVDF) Limited Lifetime Warranty
**
** Premium Color 25 Year Limited Warranty
Nu-Wave Corrugated - 24 & 22 Gauge Colors
Dura Tech 5000 (PVDF) Limited Lifetime Warranty
Nu-Wave Corrugated Colors - 24 & 22 Gauge Colors
Dura Tech mx (PVDF) Limited Lifetime Warranty
**
** Vintage coated metal is available in 24ga only. Vintage is an innovative coating processed over galvanized G90 metallic-coated steel substrate producing a beautiful, durable, aged-metallic finish.
